MAUS Stixx Pro - Automatic Fire Suppression Unit
MAUS Stixx Pro - Automatic Fire Suppression Unit
Free UK delivery on all MAUS orders
Description
Description
Smaller than a standard marker pen, MAUS Stixx PRO is fitted inside the small, closed compartments where electrical fires start — consumer units, distribution boards, fuse boxes, server and comms cabinets, machinery housings, caravan and boat lockers — and extinguishes a fire inside them within seconds.
It is a self-contained automatic fire suppression unit. No power supply, no wiring and no maintenance are required.
How it works
A heat-detecting cable runs the length of the unit. When it is exposed to flame, or when the unit reaches its activation threshold of 170 °C ±10 °C, the unit discharges in five seconds or less and completely floods the compartment with a patented potassium-based agent. The agent absorbs heat and interrupts the chemical chain reaction of the fire, extinguishing it at source before it can spread beyond the enclosure.
The agent is non-toxic and environmentally friendly, and leaves no residue to clean up afterwards.
Where it is used

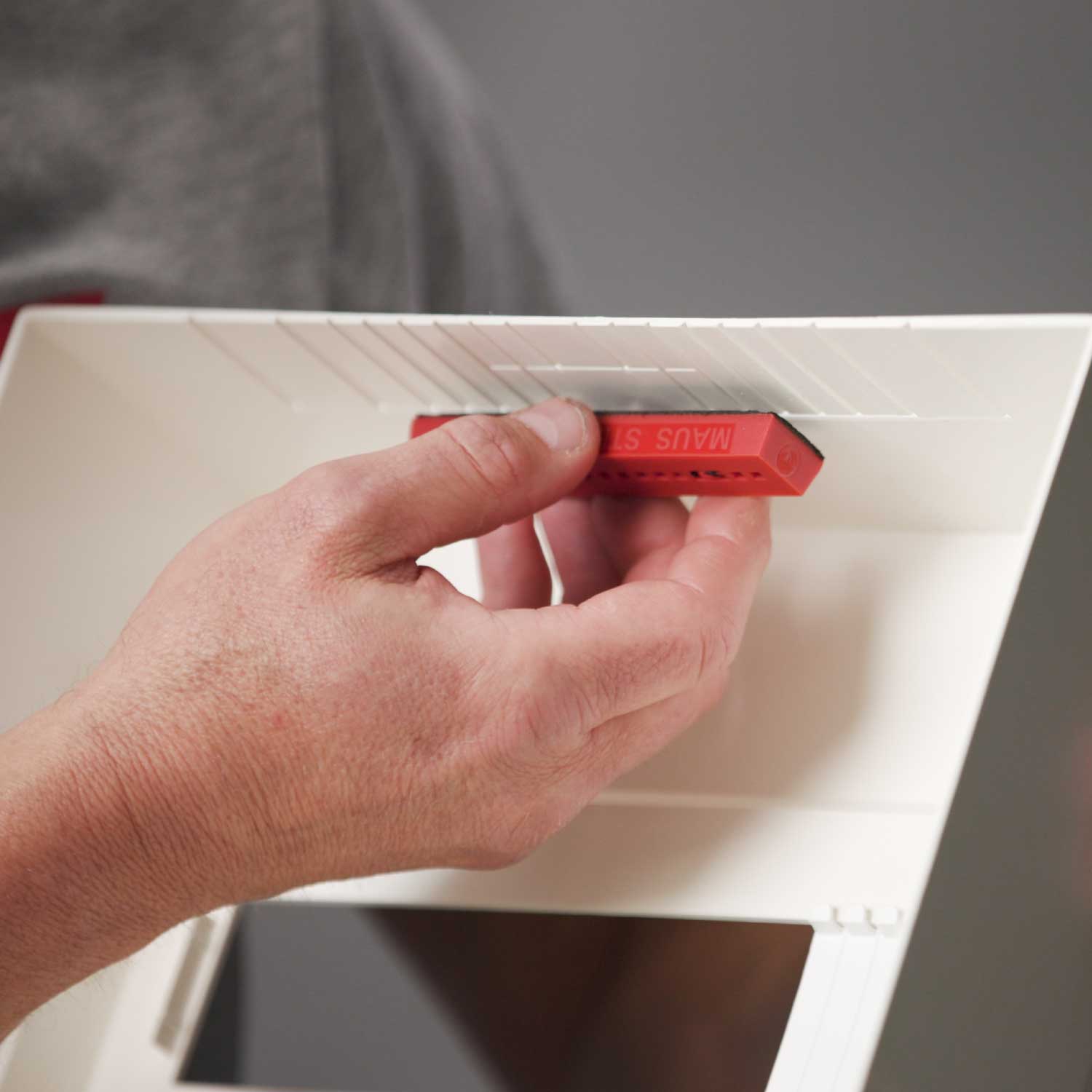

- Consumer units, distribution boards and fuse boxes
- Server, comms and control cabinets
- Machinery and equipment housings

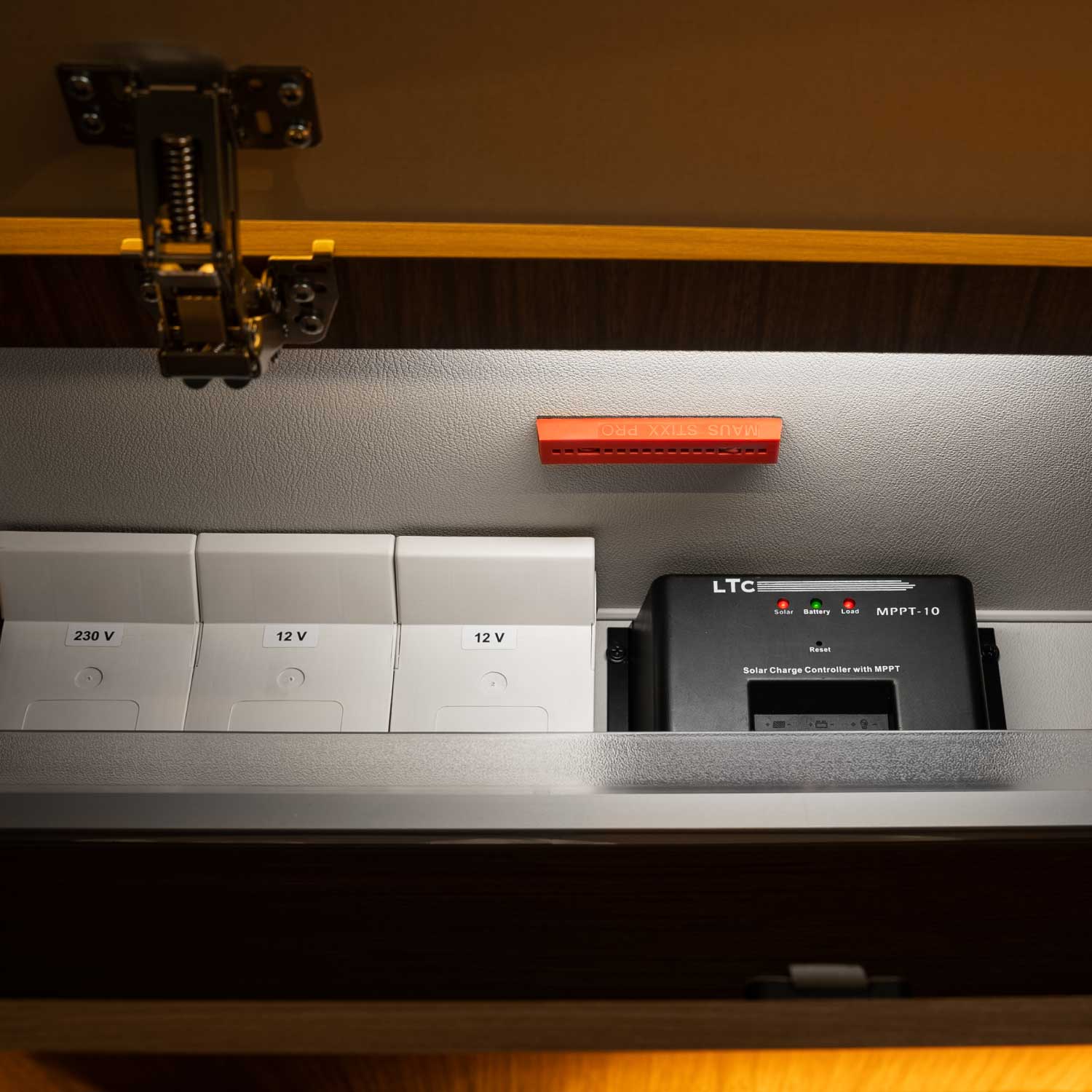

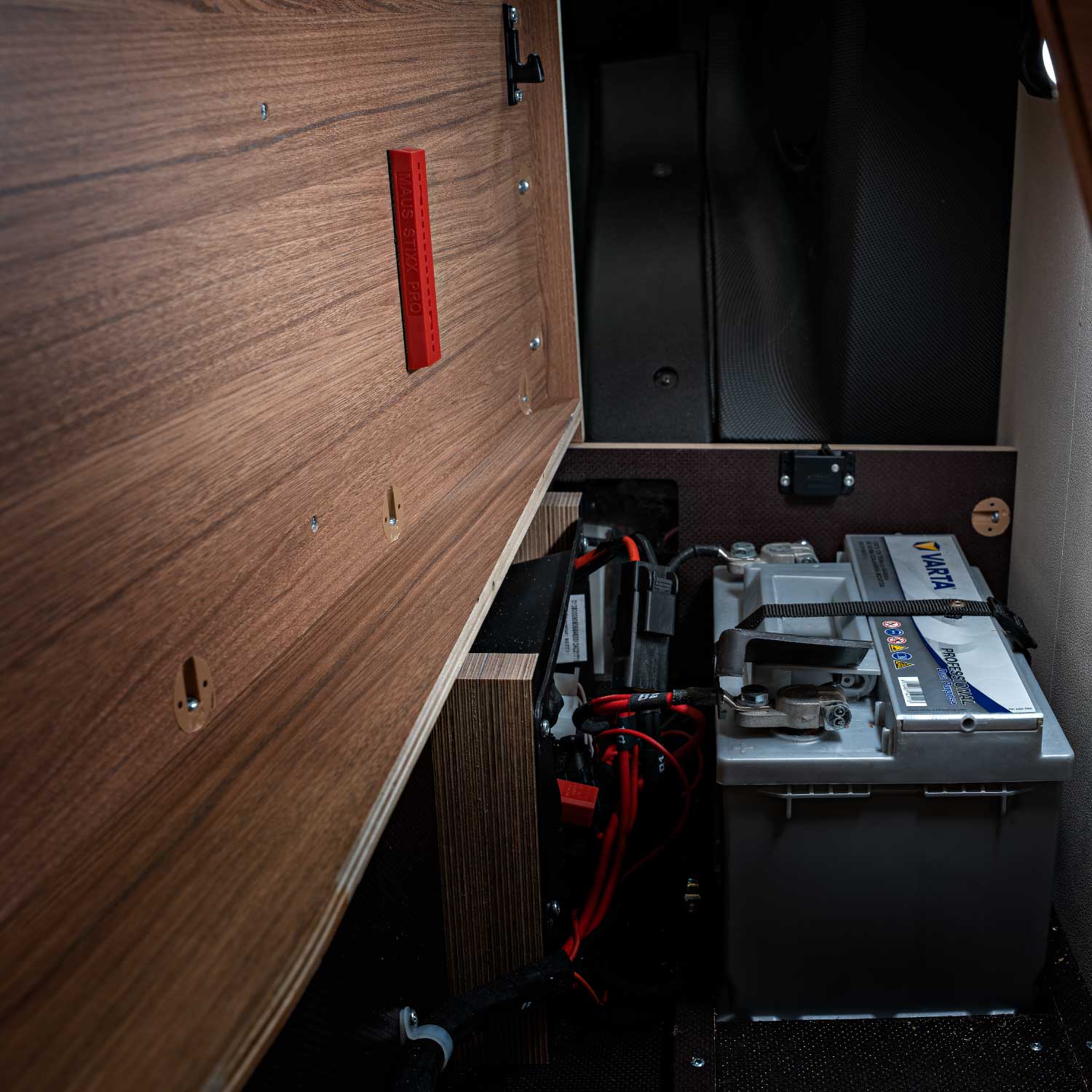

- Caravan, motorhome and boat lockers
- Any closed compartment up to 0.1 m³ where an electrical fault could start a fire
Key features
- Fully automatic — no power, wiring or trigger signal required
- Activates at 170 °C ±10 °C, or on direct flame contact
- Discharges in 5 seconds or less
- Protects up to 0.1 m³ with 100% total flooding
- Patented potassium-based agent — non-toxic, environmentally friendly, residue-free

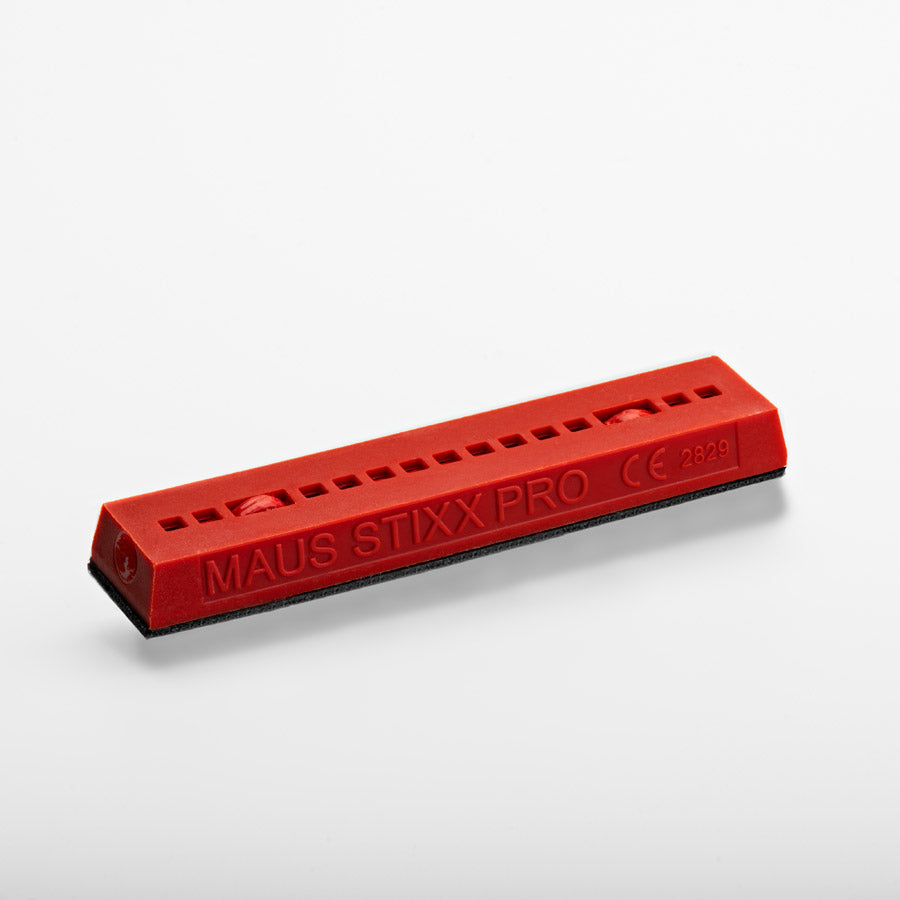

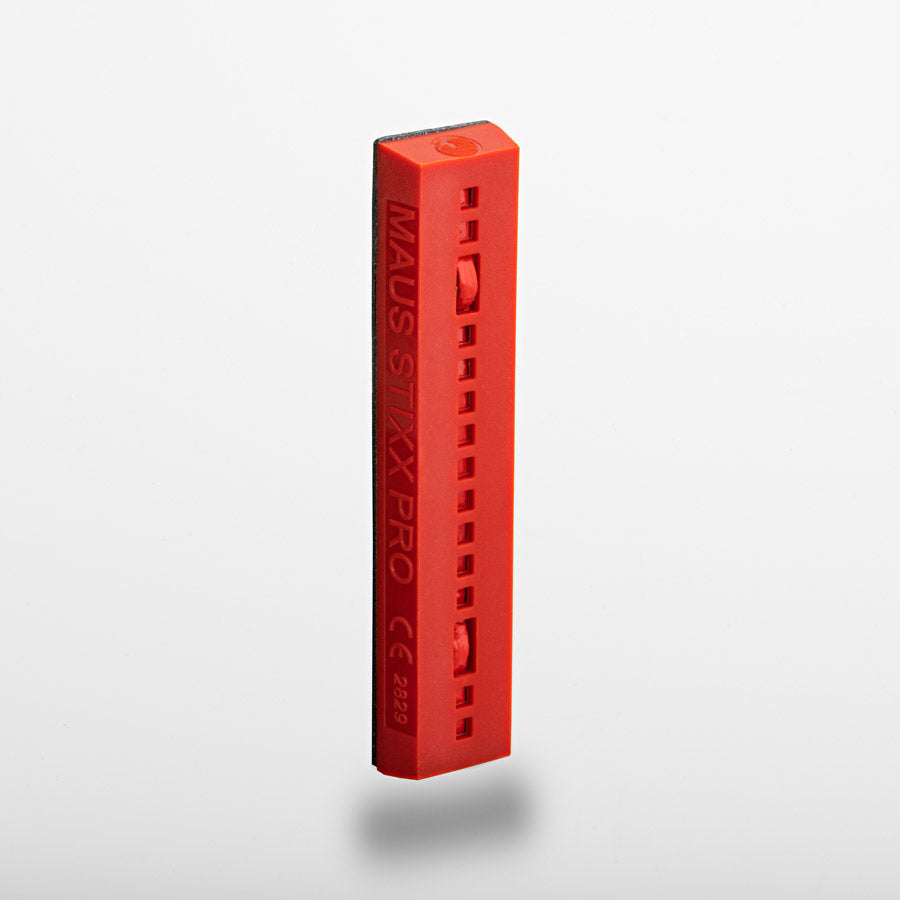

- Just 12.1 × 1.7 × 1 cm and 26 g
- Fits in approximately 5 seconds and needs no ongoing maintenance
- 5-year service life
Important installation notes
- Stixx PRO is designed for closed compartments only. It will not work as intended in open or ventilated spaces, because the agent cannot reach and hold the concentration needed to suppress the fire.
- Leave clear space at the discharge ports so the agent can be released without obstruction. MAUS specify a minimum of 3 cm; we recommend 5 cm where the enclosure allows.
- The unit protects a volume of up to 0.1 m³ (approximately H100 × W50 × D20 cm). Larger enclosures require a higher-capacity unit from the Stixx PRO range.
- Operating temperature range is −30 °C to +70 °C.
- Service life is 5 years from installation (6-year shelf life). Replace the unit at the end of its service life and after any activation.
- Stixx PRO is a supplementary fire protection device. It does not replace fire detection, alarm or extinguishing systems required by law or by your fire risk assessment.
Installation in third-party property
MAUS require installer certification to fit Stixx PRO units in any property other than your own. If you are installing on behalf of a customer, landlord or employer, certification must be held before the unit is fitted.
Our fire safety division, Core Fire, provides certified installation across the UK. Get in touch and we will arrange it with your order.
Specification
| Article number (MPN) | 1350-1 |
| EAN (GTIN-13) | 7350015530157 |
| Manufacturer | MAUS |

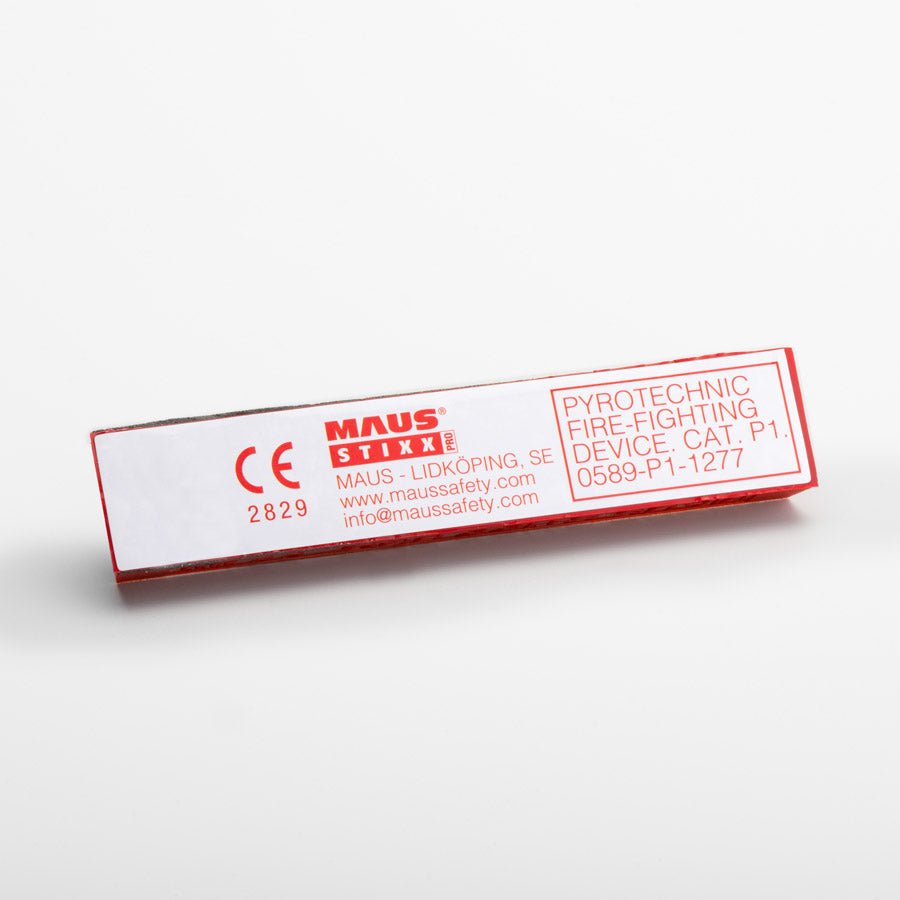

| Certification | CE 2829 |
| Dimensions | 12.1 × 1.7 × 1 cm |
| Weight | 26 g |
| Protected volume | 0.1 m³ (H100 × W50 × D20 cm) |
| Activation temperature | 170 °C ±10 °C |
| Activation method | Heat-detecting cable; also activates on direct flame contact |
| Discharge duration | ≤ 5 seconds |
| Extinguishing agent | Patented potassium-based aerosol — non-toxic, environmentally friendly, residue-free |
| Operating temperature | −30 °C to +70 °C |
| Service life | 5 years (6-year shelf life) |
| Units per box | 1 |
Frequently asked questions
Can I fit a fire suppression device inside a consumer unit?
Yes, provided the compartment is enclosed and no larger than 0.1 m³, with at least 3 cm of clear space at the discharge ports.
Do I need certification to install one?
In your own property, no. In any third-party property — a customer's, a tenant's or an employer's — MAUS require the installer to hold certification. Core Fire provides certified installation across the UK.
Does it work in a ventilated enclosure?
No. Ventilation prevents the agent from reaching and holding the concentration needed to suppress the fire. Enclosed compartments only.
Does it leave residue or damage the equipment?
No. The patented potassium-based agent is non-toxic, environmentally friendly and residue-free.
Does it replace my alarm or extinguisher system?
No. Stixx PRO is supplementary protection. It does not discharge any duty imposed by law or by your fire risk assessment. Pair it with fire detection and fire extinguishers appropriate to the premises.
What size enclosure does it cover?
Up to 0.1 m³, roughly H100 × W50 × D20 cm. Larger enclosures need a higher-capacity unit from the Stixx PRO range.
Key Features
Key Features
- Once activated, it will release 100% of it's contents
- Activation at very low temperature - 180 °C
- Easy placement at the top of a space
- With it's small size, you can place the unit anywhere
- The potassium formula is 100% non-toxic and environmently friendly
- Maintenance free during its 5 year life span
- With it's small size, you can place the unit anywhere
- The potassium formula is 100% non-toxic and environmently friendly
- The potassium formula is 100% non-toxic and environmently friendly
- Maintenance free during its 5 year life span
- No complex system. No wiring. No batteries. No pressure.
