Consilium CN-DPH-CS Dual Optical Smoke Heat Detector 023118 Addressable EN 54-7

Consilium CN-DPH-CS Dual Optical Smoke Heat Detector 023118 Addressable EN 54-7

Brand: NORD Fire

£0.00
£0.00

    Description

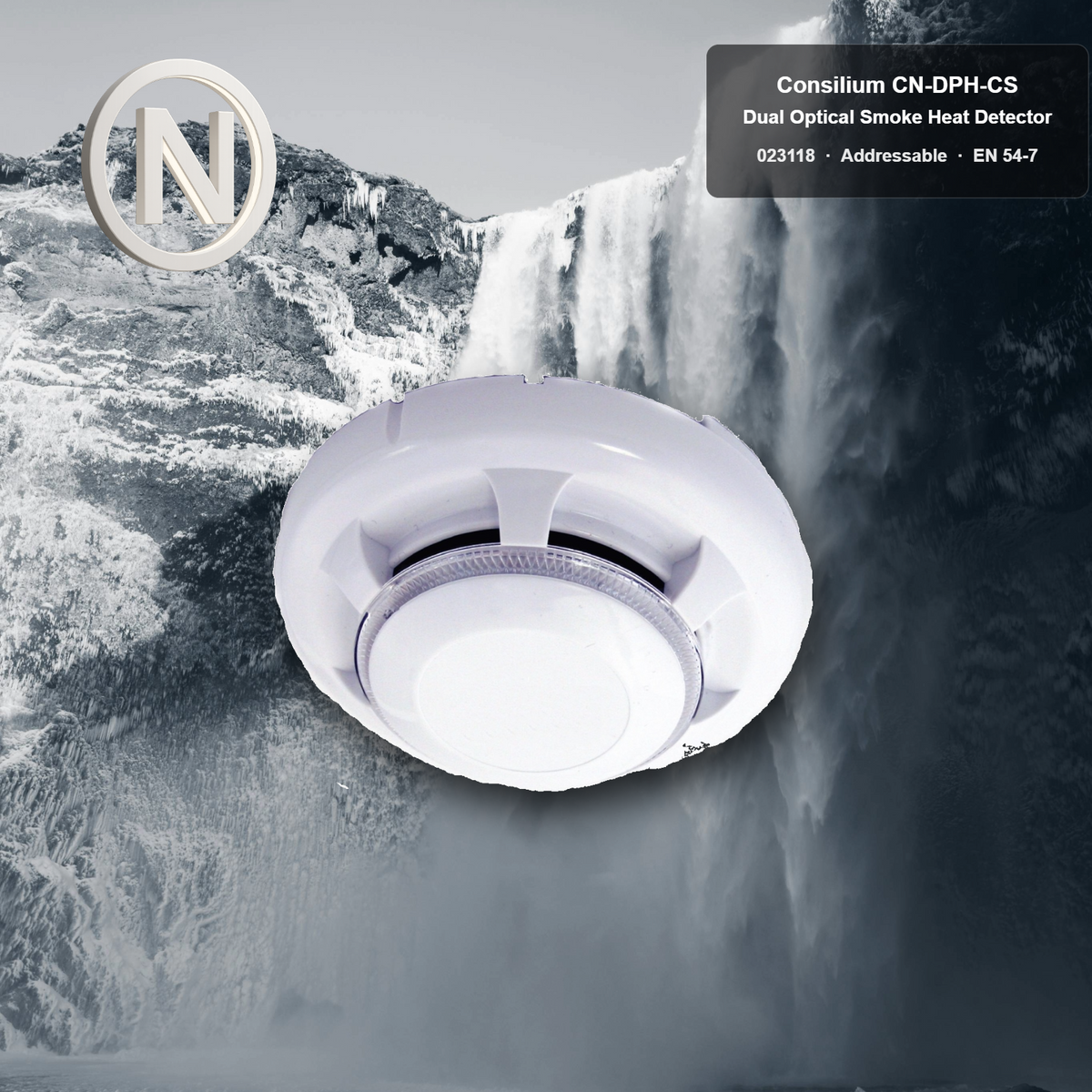

    Consilium CN-DPH-CS Dual Optical Smoke & Heat Detector 023118

    Part number 023118 / CN-DPH-CS · Dual optical smoke and heat detector

    Equipment being quoted

    Analogue addressable dual-wavelength optical smoke and heat detector. Two light sources of different wavelengths give a stable response across different smoke types. New, boxed stock.

    Key features

    • Dual-wavelength optical chamber - stable reaction to different kinds of smoke
    • Combined smoke and heat sensing in one addressable head
    • Output for remote indication, max 2 mA
    • Suitable base plate selected via the Consilium Base Matrix

    Technical specification

    Nominal voltage 35 V DC
    Working voltage 20-38 V DC
    Working current < 200 uA
    Alarm current 5 mA
    Remote indication Max 2 mA
    Temperature range -10 degC to +55 degC
    Relative humidity <= 95 % RH, non-condensing
    Ingress protection Depends on base
    Cover material / colour PC/ABS - White
    Weight approx. 120 g
    Systems CS4000 - NSAC-1 - TERRA FIRE - TERRA ONE

    Certification

    EN 54-7 - EN 54-5 Class C - EN 50130-4 - 2531-CPR-232.1685 - DoP CN-1685

    Quoted from Consilium data sheet 023118_CN-DPH-CS_I0_EN_2014_E. Declaration of Performance available on request.

    Important notes

    • EN 54-7 and EN 54-5 Class C, certificate 2531-CPR-232.1685, DoP CN-1685, EMC EN 50130-4 - as printed on the data sheet
    • Detector head only; base not included
    • Do not remove the dust cover until all dusty work is finished
